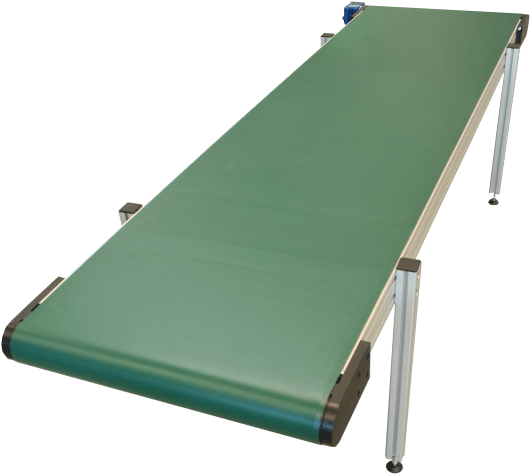

Flat Belt conveyor C80

Belt conveyors are built around an 80 diameter drive pulley. They are equipment specially designed for the transport of light and bulky loads. These conveyors are manufactured in France and are distinguished by their ability to adjust the width to the nearest millimeter, making them extremely precise and suitable for various industrial applications.

C80 conveyor details

The use of these 80 diameter belt conveyors is very widespread in many industries. Their compact design, based on an elcom profile, allows them to be easily integrated into small spaces. They are particularly used in sectors such as logistics, automotive, packaging, the food industry and many others.

These conveyors are distinguished by the presence of a welded cleat under the belt, which ensures optimal guidance of the belt and facilitates adjustment. Thanks to this guiding system, it is possible to easily adjust the belt to adapt to the specific needs of each application. In addition, this cleat keeps the belt centered and avoids any off-centering when transferring loads from the side of the conveyor.

One of the major advantages of 80 diameter belt conveyors lies in their ability to offer a modular width on request, to the nearest millimeter. This means that it is possible to adjust the width of the conveyor according to the specific dimensions of the loads to be transported. This flexibility makes it possible to adapt to a wide variety of products, whether small or large.

In addition, the easy adjustment of the belt and the possibility of making conveyors wider than they are long offer great versatility in their use. These conveyors can be configured to meet the specific needs of each application, whether for transporting long, heavy or bulky loads.

Elcom 80 conveyors are available with 2 motors

BELT CONVEYORS DIAMETER 80 – 90W

Technical characteristics of the C80 conveyor

The 80 diameter belt conveyors have the following characteristics:

Smooth belt: The conveyors are equipped with a specific smooth belt (Cxxxx42201) with a thickness of 1.3 mm. This belt ensures smooth transport of light and bulky loads.

End Drive: The conveyors feature an end pulley drive system. This allows the belt to advance in a controlled and regular manner, ensuring efficient movement of loads.

90W motor: The conveyors are equipped with a motor with a power of 90W. This motor ensures adequate propulsion of the belt, allowing loads to be transported efficiently.

Additional dimensions and specifications

  • Width A : 160 to 600 mm
  • Length L : 400 to 3130 mm
  • Band width: A – 10 mm
  • Strip length: Lc = (2 x L) + 252 mm
  • Profile length: LP = L – 130 mm
  • Compact laminate base with a thickness of 8 mm
  • Stainless steel base with a thickness of 2 mm

Sole options

Engines

  • The conveyors are equipped with a motor with a power of 90W.
  • The motor can be powered by 230V single-phase or 230/400V three-phase, providing flexibility in the choice of power source.
  • The conveyor speed can be adjusted to +/- 10% and offers several options: 4, 6, 7, 9, 12, 14, 18 or 24 m/min.

Regarding the loads supported by the motor :

  • For a speed of 4 to 12 m/min, the maximum load is 30 daN (decanewtons).
  • For a speed of 14 to 24 m/min, the tolerable load is 15 daN.



It is important to note that these loads apply excluding accumulation, i.e. the conveyors are designed for the continuous transport of loads without stopping or accumulation.

Finally, the belt installation tension is limited to a maximum of 0.3%, which guarantees correct installation of the belt to ensure optimal operation of the conveyor.

BELT CONVEYORS DIAMETER 80 – 250W

Belt conveyors diameter 80 – 250W are equipment designed for the efficient transport of light and bulky loads. These conveyors offer a reliable and efficient solution to meet the needs of various industries.

Technical characteristics of belt conveyors diameter 80 - 250W

Smooth belt : The conveyors are equipped with a specific smooth belt which ensures smooth transport of loads. This belt guarantees smooth, smooth movement, thus contributing to optimal productivity.

End Drive : The conveyors feature an end pulley drive system. This configuration allows the belt to be propelled in a controlled manner, thus ensuring smooth and regular movement of the transported loads.

250W motor : The conveyors are equipped with a powerful motor with a capacity of 250W. This robust motor guarantees efficient propulsion of the belt, thus allowing loads to be transported optimally.

Dimensions and specifications of belt conveyors diameter 80 - 250W

  • Compact conveyors on elcom profile designed for transporting light and bulky loads.
  • The welded cleat under the belt ensures precise guidance and facilitates adjustment for easy adaptation to the specific needs of each application.
  • The framework of the conveyors is made of aluminum profile, offering a combination of lightness and robustness to ensure optimal stability.

Available options

  • An optional stainless steel base which offers increased resistance to specific environmental conditions.



The 80 – 250W diameter belt conveyor also offers a width that can be adjusted to the nearest millimeter, making it possible to precisely adapt to the dimensions of the loads to be transported.

Motors available for belt conveyors diameter 80 - 250W

  • 250W, powered by 230V single-phase or 230/400V three-phase.



  • The conveyor speed is adjustable and precise with +/- 10%, offering several options for each application, ranging from 4 to 24 m/min.

The loads supported by the motor vary depending on the speed of movement

  • With a speed of 4 to 12 m/min, the load it can support is 30 daN.



  • With a speed of 14 to 24 m/min, the load supported is 15 daN.



Regarding the belts used on belt conveyors diameter 80 – 250W, they are specific (Cxxxx42201) and have a thickness of 1.3 mm. These belts feature a guide under the belt, ensuring precise and reliable positioning of loads during transport. The installation tension of the strip is limited to a maximum of 0.3% to ensure correct installation.

Belt conveyors diameter 40 motor end drive below

Technical characteristics

Smooth belt: The 40 diameter belt conveyors with drive at the end and motor underneath are equipped with a smooth belt which allows regular and smooth transport of parts.

Motor below: The motor is positioned below the conveyor, thus facilitating its integration into various configurations and allowing a reduced footprint.

Toothed belt drive: The conveyor is driven by a toothed belt with a pitch of 5 mm and a width of 32 mm. This configuration ensures efficient transmission of motor power to the conveyor belt.

Steel pulleys mounted on ball bearings: The conveyors are equipped with steel pulleys mounted on high quality ball bearings. This ensures smooth operation, reduces friction and contributes to the reliability and durability of the conveyor.

Stainless steel base: The conveyors are supplied with a stainless steel base as standard for widths from 200 mm to 400 mm. This option ensures corrosion resistance and is particularly suitable for demanding environments. A stainless steel base is also available as an option for other widths.

Dimensions and engines :

Width A: Available in 40mm, 80mm, 120mm, 160mm, 200mm, 250mm, 300mm and 400mm to suit different room sizes.

Length L: Conveyors can range in length from 400mm to 6,000mm, providing flexibility in choosing the right length for the application.

Belt width: The width of the belt corresponds to width A minus 5 mm, ensuring a precise fit for optimal transport of parts.

Strip length: The length of the strip is calculated according to the following formula: Lc = (2xL+132).

Overall length: The overall length of the conveyor is defined by the formula Lh = L + 42 + 2 x belt diameter + tension.

Profile length: The length of the profile is determined by the formula LP = L – 52.5.

The conveyors are available with a power supply of 230 V single phase and 230/400 V three phase to meet the needs of different installations.

The movement speeds offered are 2 m/min, 3 m/min, 6 m/min, 9 m/min, 12 m/min, 18 m/min and 24 m/min, with a tolerance of +/- 10 %.

On request it is possible to obtain a 24 VDC power supply for the conveyor.

Engines

Bands

  • The recommended installation tension for the strip is 0.5% maximum, ensuring good hold of the strip while avoiding overtension problems.



40 diameter belt conveyors with end drive and motor underneath are designed to meet the needs of transporting parts in various industrial applications. Their compact design, combined with width, length and motorization options, makes them a versatile and reliable solution to optimize your handling operations.

BELT CONVEYORS DIAMETER 40 CENTRAL DRIVE DOUBLE BELT



40 diameter belt conveyors with double belt central drive offer an efficient solution for transporting wide parts while optimizing the space between the two belts. These conveyors are driven by a single motor, which allows economical use of energy while ensuring optimal performance.

Technical characteristics

Two parallel conveyors: The conveyors are designed with two parallel belts that operate in synchronization, providing increased capacity for transporting wide parts.

Central drive: Both belts are driven by a single motor, centrally positioned, which ensures a balanced distribution of driving power on both belts.

Adjustable drive position: The position of the drive can be adjusted along the profile according to the specific needs of the application, allowing optimal adaptability.

Center distance between the two conveyors: The center distance between the two conveyors can be adapted according to the specific requirements of the application, making it possible to effectively manage the free space between the two belts.

Stainless steel base: A stainless steel base is available as an option, providing corrosion resistance and increased durability for demanding environments.

Dimensions and engines

  • Width A: Available in 40 mm and 80 mm to adapt to the different widths of parts to be transported.

    Length L: Conveyors can range in length from 400mm to 6000mm, providing flexibility in choosing the appropriate length for the application.

    Belt width: The width of the belt corresponds to width A minus 5 mm, allowing precise adjustment for optimal transport of parts.

    Strip length: The length of the strip is calculated according to the following formula: Lc = (2xL+375) x 0.992.

    Profile length: The length of the profile is determined by the formula LP = L – 50.

Conveyor motorization

The conveyors are available with a 230 V single-phase and 230/400 V three-phase power supply to suit different installations.

The movement speeds offered are 2 m/min, 3 m/min, 6 m/min, 9 m/min, 12 m/min, 18 m/min and 24 m/min, with a tolerance of +/- 10 %.

On request, it is possible to obtain a 24 VDC power supply for the conveyor.

  • The recommended installation tension for the strip is 0.5% maximum, ensuring good hold of the strip while avoiding overtension problems.

The detail of the bands

40 diameter belt conveyors with double belt central drive offer a versatile and efficient solution for transporting wide parts. Their robust design, combined with motorization and belt options, makes it possible to meet the specific needs of each industrial application. Top of form

BELT CONVEYORS DIAMETER 40 CENTRAL DRIVE DOUBLE BELT INTERNAL MOTOR

Technical characteristics

Two parallel conveyors: The conveyors are equipped with two parallel belts that operate in synchronization, allowing the efficient transport of wide parts and providing high load capacity.

Central drive: Both belts are driven by a single motor integrated into the conveyor, which ensures balanced driving power on both belts, ensuring smooth and efficient movement of parts.

Adjustable drive position: The position of the drive can be adjusted along the profile according to the specific needs of the application, providing optimal flexibility and adaptation.

Center distance between the two conveyors: The center distance between the two conveyors can be adapted according to the particular requirements of the application, making it possible to effectively manage the free space between the two belts and to adapt to different part sizes.

Optional stainless steel base: An optional stainless steel base is available, providing corrosion resistance and increased durability, which is particularly useful in demanding environments.

Dimensions and engines

  • Width A: Available in 40 mm and 80 mm, allowing parts of different widths to be transported.
  • Length L: Conveyors can range in length from 400mm to 6000mm, providing flexibility in choosing the appropriate length for the application.
  • Spacing between the belts (E): It can vary from 72 mm to 800 mm, allowing the space between the two belts to be adjusted according to the dimensions of the parts to be transported.
  • Belt width: The width of the belt corresponds to width A minus 5 mm, allowing precise adjustment for optimal transport of parts.
  • Strip length: The length of the strip is calculated according to the following formula: Lc = (2xL+375) x 0.992.
  • Profile length: The length of the profile is determined by the formula LP = L – 50.

Conveyor motorization

  • The conveyors are available with a 230 V single-phase and 230/400 V three-phase power supply, allowing adaptation to different electrical installations.
  • The movement speeds offered are 2 m/min, 3 m/min, 6 m/min, 9 m/min, 12 m/min, 18 m/min and 24 m/min, with a tolerance of +/- 10 %.
  • On request, it is possible to obtain a 24 VDC power supply for specific applications requiring this voltage.
  • The recommended installation tension for the strips is 0.5% maximum, ensuring adequate tension for optimal operation of the strips.
  • The belts used are suitable for 40 diameter belt conveyors, offering excellent strength and durability.
  • Other specific belt characteristics, such as maximum diameter and stiffness, can be specified based on application needs.

The detail of the bands

BELT CONVEYORS DIAMETER 40 DOUBLE BELT END DRIVE

Technical characteristics

Two parallel conveyors: The conveyors are equipped with two parallel belts that operate in synchronization, allowing the efficient transport of wide parts and providing high load capacity.

End pulley drive: The belts are driven by steel pulleys mounted on ball bearings located at the end of the conveyor. This guarantees smooth and regular movement of the transported parts.

Optional stainless steel base: An optional stainless steel base is available, providing corrosion resistance and increased durability in demanding environments.

Dimensions

  • Width A: Available in 40 mm and 80 mm, allowing parts of different widths to be transported.
  • Length L: Conveyors can range in length from 400mm to 6000mm, providing flexibility in choosing the appropriate length for the application.
  • Spacing between belts (E): The spacing between the two belts can be adjusted according to the specific needs of the application, with a range from 72 mm to 800 mm.
  • Belt width: The width of the belt corresponds to width A minus 5 mm, allowing precise adjustment for optimal transport of parts.
  • Strip length: The length of the strip is calculated according to the following formula: Lc = (2xL) + 132.
  • Profile length: The length of the profile is determined by the formula LP = L – 52.5.
  • The conveyors are available with a power supply of 230 V single-phase and 230/400 V three-phase, which allows adaptation to different electrical installations.
  • The movement speeds offered are 2 m/min, 3 m/min, 6 m/min, 9 m/min, 12 m/min, 18 m/min and 24 m/min, with a tolerance of +/- 10 %.
  • On request, it is possible to obtain a 24 VDC power supply for specific applications requiring this voltage.

Motorization

Bands

  • The recommended installation tension for the strips is 0.5% maximum, ensuring adequate tension for optimal operation of the strips.
